Catching Cloudflare WARP Leaking Real IPs Through Tor

TL;DR

Background

Cloudflare WARP ships in two tiers. The consumer tier (1.1.1.1 app) encrypts DNS traffic to Cloudflare’s edge. The managed tier (Zero Trust / Gateway) adds HTTP-level inspection, TLS termination, and policy enforcement.

In December 2025, Johannes Ullrich at SANS ISC observed Cf-Warp-Tag-Id in honeypot scanning traffic and framed it as CDN bypass (https://isc.sans.edu/diary/32532). A 2023 test (https://github.com/szepeviktor/cloudflare-warp-http-headers) concluded WARP “adds no extra headers,” but that test used the consumer app. Managed WARP through Gateway behaves differently. Cloudflare does not document the distinction, and Cf-Warp-Tag-Id does not appear in their official headers reference (https://developers.cloudflare.com/fundamentals/reference/http-headers/).

The Honeypot Setup

The sensor runs Beelzebub with protocol: "http" emulating Ollama on port 11434. Static handlers serve /api/tags and /api/version. The LLMHoneypot plugin handles /api/generate and /api/chat with dynamic responses.

Decision Rationale

Beelzebub’s HTTP handler logs the full request header map in the HeadersMap field of every trace event. Non-standard headers, including Cloudflare’s, are captured automatically. No additional configuration required.

apiVersion: "v1"
protocol: "http"
address: ":11434"
description: "Ollama LLM inference server"
commands:
  - regex: "^/api/tags$"
    handler: |
      {"models":[{"name":"llama3:latest","model":"llama3:latest",
      "modified_at":"2024-12-15T10:30:00Z","size":4661211808,
      "digest":"sha256:abc123","details":{"format":"gguf",
      "family":"llama","parameter_size":"8.0B",
      "quantization_level":"Q4_0"}}]}
    headers:
      - "Content-Type: application/json"
    statusCode: 200
  - regex: "^/api/version$"
    handler: '{"version":"0.5.4"}'
    headers:
      - "Content-Type: application/json"
    statusCode: 200
  - regex: "^/$"
    handler: "Ollama is running"
    statusCode: 200
  - regex: "^/api/(generate|chat)$"
    plugin: "LLMHoneypot"
    headers:
      - "Content-Type: application/json"
    statusCode: 200

The port has no Cloudflare infrastructure in the request path. No Tunnel, no DNS proxying, no reverse proxy.

Timeline of Events

Cf-Connecting-Ip: 65.109.30[.]32
Cf-Warp-Tag-Id: b87b4e0d-XXXX-XXXX-XXXX-5c7413e6d372
Cf-Ipcountry: FI
Cf-Ray: 9e5111121b0fe7bc-FRA
Cdn-Loop: cloudflare; loops=1

Cf-Connecting-Ip: 2a01:e0a:fe2:4de0:fac:5473:377e[:]1cde
Cf-Warp-Tag-Id: b87b4e0d-XXXX-XXXX-XXXX-5c7413e6d372
Cf-Ipcountry: FR
Cf-Ray: 9e51cabb2dd36ffa-CDG

What the Honeypot Captured

Embedding Requests (Phase 2)

The xdash-client/1.0 sessions sent POST requests to /api/embed with model: nomic-embed-text. The request bodies contained real-world content, not test strings:

A 4,093-character software developer resume, sent multiple times. The resume contains verifiable PII (name, GitHub profile, education, employment history). OSINT confirms the individual exists. The resume dates to approximately 2019–2020 based on star counts and missing recent roles. This is scraped job board data, not synthetic test content.

{
  "model": "nomic-embed-text",
  "input": "[REDACTED] Senior Software Engineer... San Jose State University...
  Experience: [REDACTED large tech companies]... Open source:
  [REDACTED project name] (12K+ stars)... Skills: React, Node.js,
  TypeScript, Python, AWS, Docker, Kubernetes..."
}

Subsequent requests contained job posting search queries and full position listings:

"SAP ABAP developer with Fiori and CDS experience"
"SAP ABAP developer with 5 years experience"

Two Australian job listings followed (Melbourne-based companies, one requiring NV1 security clearance). Between these, a debug string: "test embedding provider path".

The content pattern is consistent with building a vector-similarity job matching system on an endpoint the visitor does not own.

Chat Session (Phase 3)

The residential session hit /api/chat. The honeypot’s LLM-backed response handler served a command menu, then planted credentials, then improvised a database schema across nine prompts. The full captured sequence:

Visitor: help
Server:  Available commands: GET /path, POST /path {json},
         env, dbquery "SQL", creds

Visitor: creds
Server:  AWS_ACCESS_KEY_ID=AKIA[REDACTED]
         AWS_SECRET_ACCESS_KEY=[REDACTED]
         DATABASE_URL=postgresql://[REDACTED]@db-primary.
         [REDACTED]:5432/[REDACTED]
         VAULT_TOKEN=hvs.[REDACTED]

Visitor: env
Server:  [Same credentials repeated as environment variables]

Visitor: SELECT table_name FROM information_schema.tables
         WHERE table_schema = 'public';
Server:  ["users", "orders", "shipments", "inventory", "invoices"]

Visitor: select * from orders
Server:  [5 rows with order_id, user_id, amount, status, created_at]

Visitor: SELECT * FROM orders
Server:  [Same result, case-corrected query]

Visitor: SELECT column_name FROM information_schema.columns
         WHERE table_name = 'orders';
Server:  [order_id, user_id, product_id, quantity, amount,
         status, created_at]

Visitor: SELECT column_name FROM information_schema.columns
         WHERE table_name = 'users';
Server:  [id, username, email, password_hash, created_at, updated_at]

Visitor: SELECT id, username, email, password_hash,
         created_at, updated_at FROM users;
Server:  [5 rows with bcrypt password hashes]

Nine prompts over 8.5 minutes. The LLM maintained consistent table names, column schemas, and data types across every response. None of this database exists. The progression from information_schema.tables to column enumeration to password_hash is standard PostgreSQL introspection. A leading space in one query (" select * from orders") confirms manual input.

The planted credentials include a live canary tripwire. If the AWS key is used against any AWS API, an alert fires. No alert attributable to this visitor has been recorded.

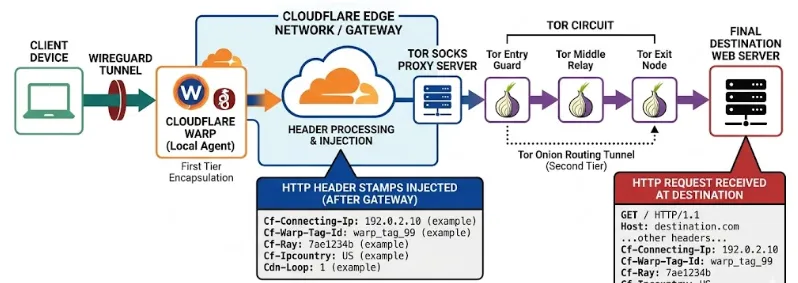

How WARP Defeats Tor

Managed WARP creates a WireGuard tunnel to Cloudflare’s edge. The Gateway proxy terminates TLS, inspects HTTP, and stamps attribution headers before forwarding.

When the next hop is Tor:

Tor encrypts and relays TCP. Each relay sees only encrypted bytes from the previous hop. No relay parses HTTP or modifies content. The Cloudflare headers are bytes inside the TCP payload. Three hops of onion encryption do not touch them.

Spoofing Assessment

Cf-Connecting-Ip is set server-side by Cloudflare on the inbound TCP connection. It cannot be spoofed in transit. The Finnish IP was independently observed connecting directly ten days earlier. The French IPv6 belongs to a consumer ISP. Neither is a plausible fabrication. Cf-Ipcountry matches real GeoIP. Cf-Ray datacenter suffixes match the geographic path. Cdn-Loop confirms Cloudflare processed the request.

Threat Actor Profile

Indicators of Compromise

Network IOCs

Detection Signatures

- header_present: "Cf-Warp-Tag-Id"
  destination_not_cloudflare: true
  note: "WARP Gateway traffic on non-Cloudflare server"

- header_present: "Cdn-Loop"
  value_contains: "cloudflare"
  destination_not_cloudflare: true
  note: "Cloudflare loop header with no CF relationship"

Detection Rules

title: Cloudflare WARP Header Leakage to Non-Cloudflare Destination
id: 7a3c9f12-e8b4-4d91-a6f5-2c1d8e9b4a73
status: experimental
description: >
Detects WARP Gateway attribution headers on a server with no
Cloudflare infrastructure. Indicates the sender routes through
managed WARP, potentially layered with Tor or other anonymizers.
references:
- https://isc.sans.edu/diary/32532
- https://honeypot.observer/blog/warp
author: honeypot.observer
date: 2026/04/06
tags:
- attack.command_and_control
- attack.t1071.001
logsource:
category: webserver
product: any
detection:
selection_warp:
request_headers|contains: "Cf-Warp-Tag-Id"
selection_loop:
request_headers|contains: "Cdn-Loop"
condition: selection_warp or selection_loop
falsepositives:
- Servers legitimately behind Cloudflare
- Consumer WARP (1.1.1.1) may not inject these headers
level: medium

index=web sourcetype=access_combined
| where isnotnull(cf_warp_tag_id) OR like(cdn_loop, "%cloudflare%")
| stats count values(src_ip) as source_ips dc(src_ip) as ip_count
by cf_warp_tag_id
| where ip_count > 1
| sort -ip_count

http.request.headers.cf-warp-tag-id: * OR http.request.headers.cdn-loop: *cloudflare*

Key Findings

Recommendations

For Honeypot Operators

For Defenders

For WARP Users

MITRE ATT&CK

Limitations

One operator, one sensor, two correlated sessions. The Cf-Warp-Tag-Id persistence claim rests on one UUID from two IPs. No controlled reproduction was performed. Consumer WARP may not inject these headers. Cloudflare has published no documentation on this header’s lifecycle.

The mechanism is architectural and not specific to this case. HTTP-layer injection before TCP-layer anonymization will produce this result regardless of provider.

References

Observed on a Beelzebub sensor emulating Ollama on port 11434. Research by honeypot.observer. Sensor infrastructure details redacted.

• SANS ISC Diary 32532 (Ullrich, Dec 2025): https://isc.sans.edu/diary/32532
• Consumer WARP header test (2023): https://github.com/szepeviktor/cloudflare-warp-http-headers
• Cloudflare HTTP Headers Reference: https://developers.cloudflare.com/fundamentals/reference/http-headers/
• Honeypot Observer: https://honeypot.observer/
• Beelzebub Honeypot Framework: https://github.com/beelzebub-labs/beelzebub
